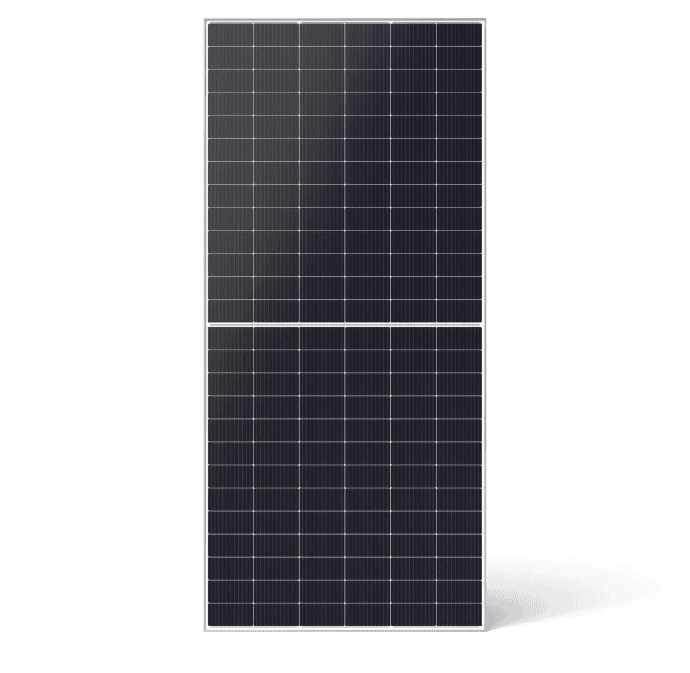

JA Solar 590W Bifacial TOPCon Solar Module
Click the button below to request a quote. We’ll automatically know which product you’re inquiring about. If you’re interested in purchasing more than one, please specify the quantity in the comments section.
JA Solar 590W bifacial panels use 11BB PERCIUM cells in half cut configuration with glass on front and back. This double glass bifacial design allows for energy production via the light reflected from the ground or other objects behind the panel. This provides an overall higher energy output, lower temperature coefficient, less shading loss, and higher tolerance for mechanical loading.
| SKU | JAM78D30 590/MB |
| Manufacturer | JA Solar |
| Number of cells | 156 (78) |
| Frame Colour | Silver |
| Backsheet Colour | White |
| Maximum Power (Pmax) | 590 W |
| Open Circuit Voltage (Voc) | 53.30 V |
| Short Circuit Current (lsc) | 13.93 A |
| Voltage at Maximum Power (Vmp) | 44.80 V |
| Current at Maximum Power (lmp) | 13.17 A |
| Module Efficiency | 21.1 % |
| Weight | 34.6 kg / 76.3 lbs |
| Dimensions | 97.0 x 44.65 x 1.38 in |
| Pallet | 31 |
- Free local pickup at locations across Canada
- Shipping is available Canada wide
- Shipping calculated at checkout
