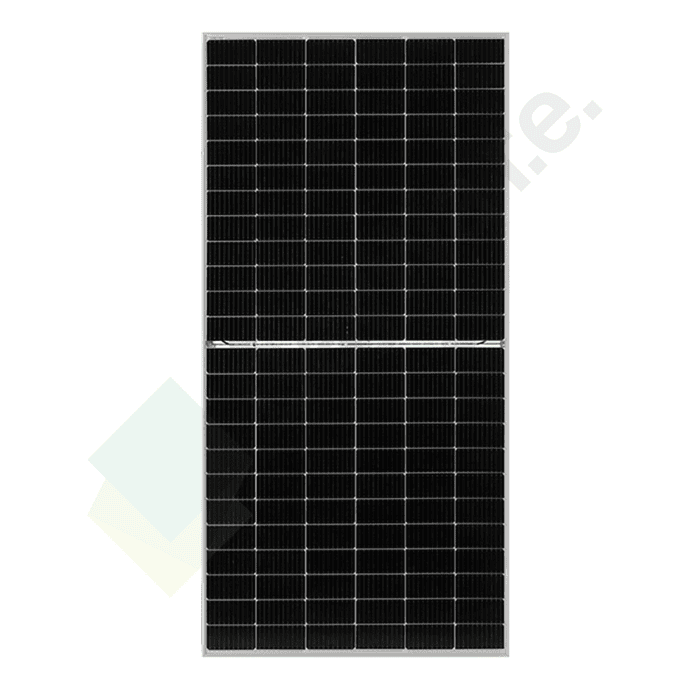

Jinko Solar 535W Bifacial Solar Module

SKU: JKM535M-72HL4-TV

Click the button below to request a quote. We’ll automatically know which product you’re inquiring about. If you’re interested in purchasing more than one, please specify the quantity in the comments section.

The Jinko Solar 535W JKM535M-72HL4-TV is a high-output, bifacial solar module built for residential, commercial, or utility-scale installations. It uses advanced monocrystalline PERC half-cell technology and a bifacial design so it can generate electricity from both its front and rear surfaces. The panel is built to withstand demanding weather conditions, supports high system voltages, and is engineered for long-term reliability and performance.

535 W maximum power output
Rated for 1500 V DC systems
Engineered for high snow and wind loads

Datasheet

Jinko Solar 535W Datasheet

SKU	JKM535M-72HL4-TV
Manufacturer	Jinko Solar
Number of cells	120 (60)
Frame Colour	Black
Backsheet Colour	Clear
Maximum Power (Pmax)	505 W
Open Circuit Voltage (Voc)	44.05 V
Short Circuit Current (lsc)	14.48 A
Voltage at Maximum Power (Vmp)	37.11 V
Current at Maximum Power (lmp)	13.61 A
Module Efficiency	22.8 %
Weight	27.3 kg / 60.2 lbs
Dimensions	76.89 x 44.65 x 1.18 in
Pallet	36
Container Quantity	864
