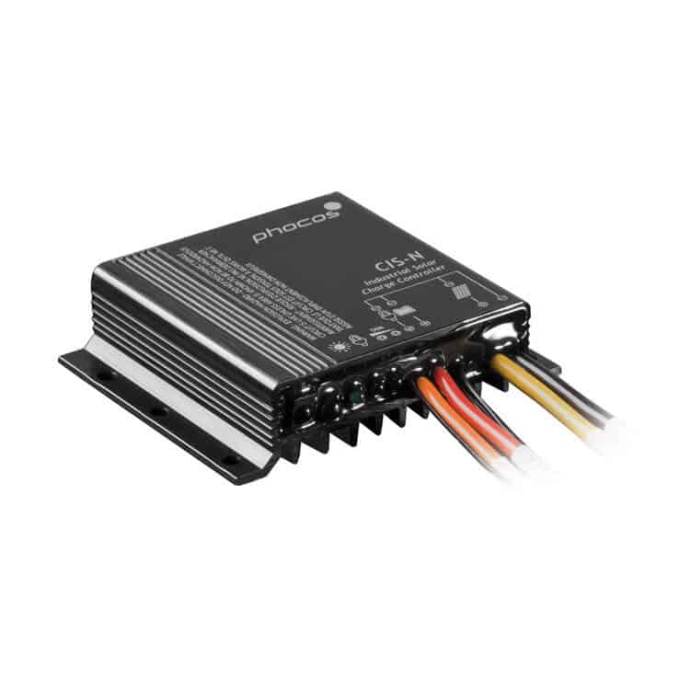

Phocos 20A 12/24V Solar Charge Controller with Lighting Control

The CIS-N was especially developed to deliver optimum performance in industrial PV systems in demanding environments. It features 4-stage, series-switching PWM charge regulation and is fully programmable via infrared devices (CIS-CU or MXI-IR and CISCOM software).

The CIS-N includes convenient and advanced lighting control, which allows the user to decide whether they want the automatic lighting control with LED dimming to be time or low-voltage activated.

• Works in 12 or 24 V systems (auto recognition)
• Fully programmable charge/discharge program via infrared (CIS-CU or MXI-IR and CISCOM software)
• Timed and low-voltage dimming settings
• Dimming interface for external LED drivers
• Fully potted (IP68) aluminum housing
• UL1741/Class I Div. 2 certified
• Infrared-programmable load timing feature with dimming, ideal for lighting systems
• Compatible with Lithium batteries (no BMS communication)
